BAR AD25.185
Barras espaciadoras para matrices ajustables AD25.125 y AD65.185.
AD25.125Utillaje > SOLUCIONES DE PLEGADO > Matrices Especiales > Matrices Regulables > AD65.185AD120.300
Código | Long. | V(mm) | Peso | Precio | |
---|---|---|---|---|---|
AD65.185.250 | 250 | 65-185 | 44 |
|
|
AD65.185.500 | 500 | 65-185 | 86 |
|
|
AD65.185.550 | 550 | 65-185 | 96 |
|
|
AD65.185.1000 | 1000 | 65-185 | 170 |
|
|
AD65.185.1050 | 1050 | 65-185 | 180 |
|

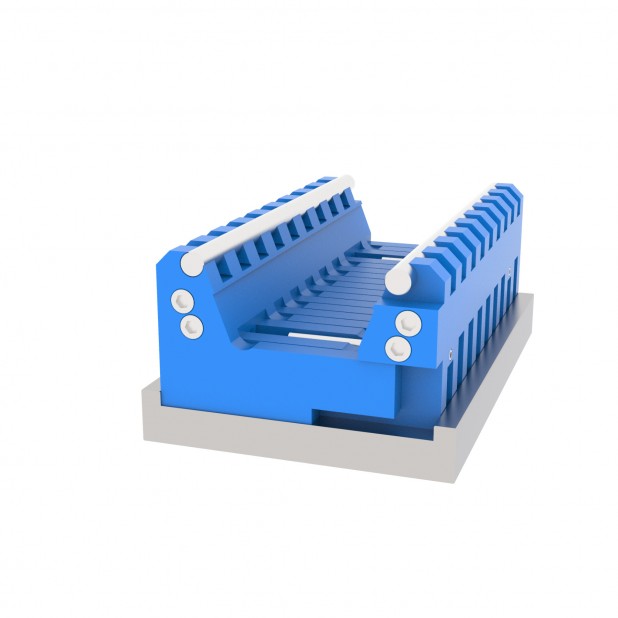

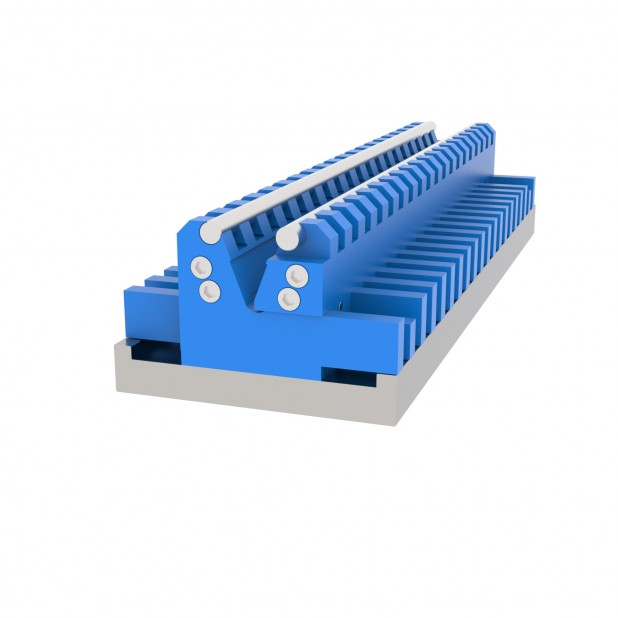

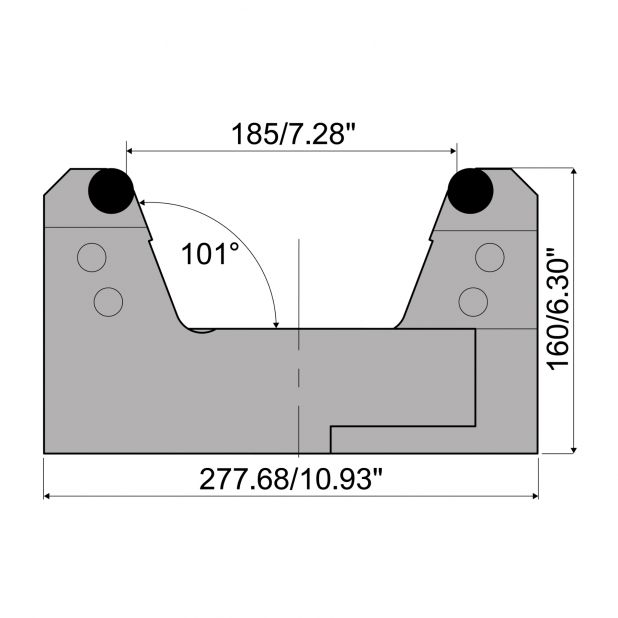

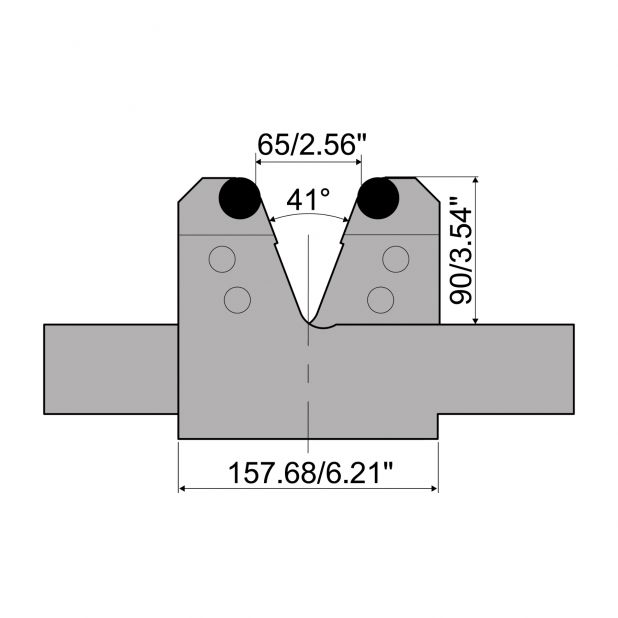

Matrices V regulables V min. 65 mm and V max. 185 mm. Radio = 12,5 mm. máx capacidad 2000 kN/m at 90°.
Barras espaciadoras para matrices ajustables AD25.125 y AD65.185.
Soporte para AD76185
