34300Utillaje > SOLUCIONES DE PLEGADO > Utillaje > Tipo R1: Matrices > 3400034100

34000

Código Long. Peso Precio
34000.835 835 mm 21.5
34000.415 415 mm 10.7
34000.835s 835 mm FCA 21.5

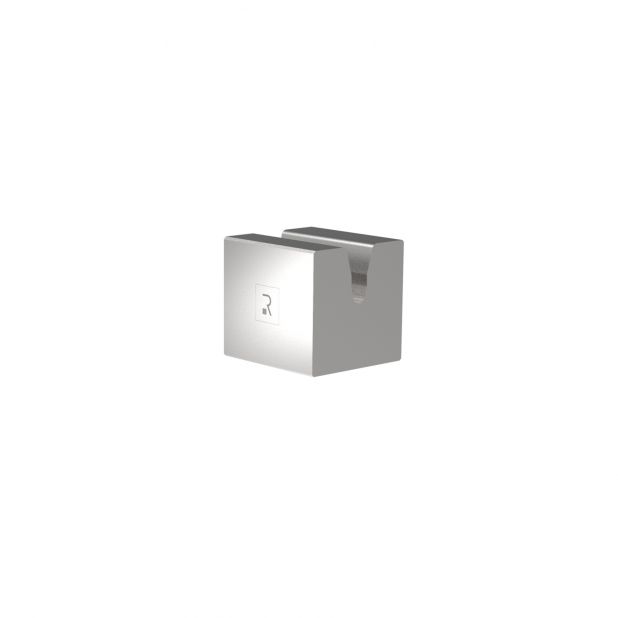

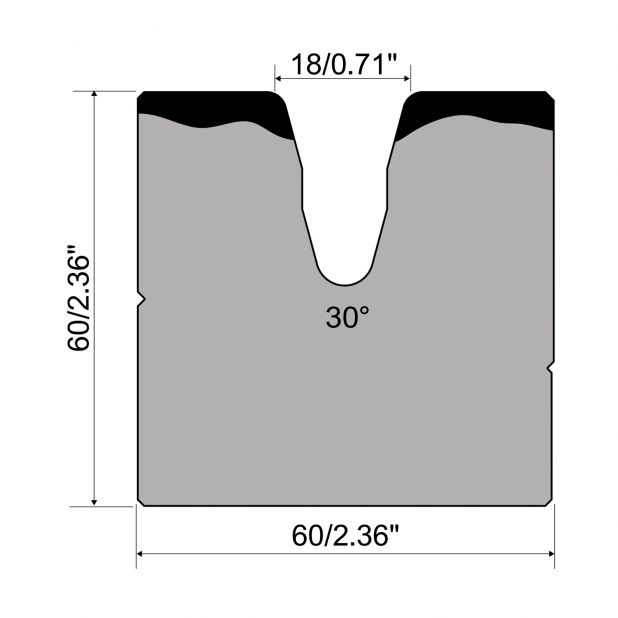

1-V die R1 European type A Series with total height=60mm, α=30°, Radius=3mm, Material=C45, Max. load=800kN/m
1-V die R1 European type A Series with total height=60mm, α=30°, Radius=3mm, Material=C45, Max. load=800kN/m
  • Descripción
  • Características
  • Archivos adjuntos

Matriz con 1-V tipo R1 estilo Européo Serie A con altura=60mm, α=30°, Radio=3mm, material=C45, máx capacidad=800kN/m.

835 mm FCA
