34100

Código Long. Peso Precio
34100.835 835 mm 21.7
34100.415 415 mm 10.8
34100.835s 835 mm FCA 21.7

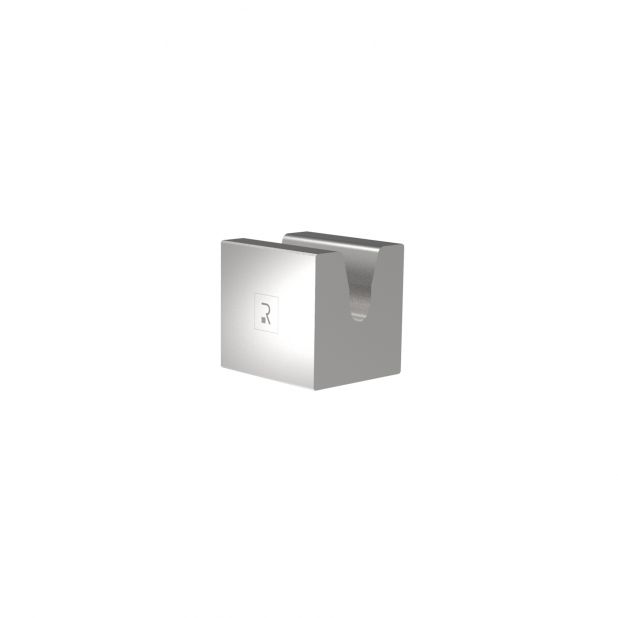

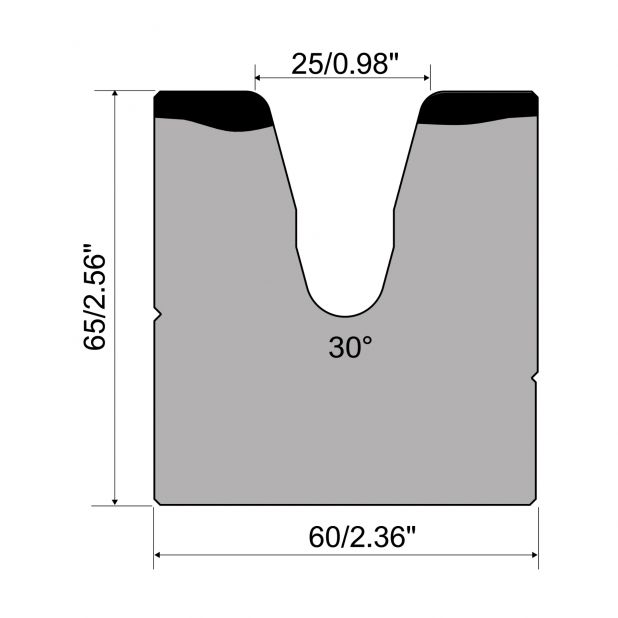

1-V die R1 European type A Series with total height=65mm, α=30°, Radius=4mm, Material=C45, Max. load=600kN/m
1-V die R1 European type A Series with total height=65mm, α=30°, Radius=4mm, Material=C45, Max. load=600kN/m
  • Descripción
  • Características
  • Archivos adjuntos

Matriz con 1-V tipo R1 estilo Européo Serie A con altura=65mm, α=30°, Radio=4mm, material=C45, máx capacidad=600kN/m.
