CFH.150.88.R025Utillaje > SOLUCIONES DE PLEGADO > Utillaje > Tipo R1: Punzones > CFH.150.30.R08

CFH.150.30.R08

Código Long. Peso Precio
CFH.150.30.R08.835 835 mm 17.50
CFH.150.30.R08.415 415 mm 8.70
CFH.150.30.R08.800 800 mm F 16.90

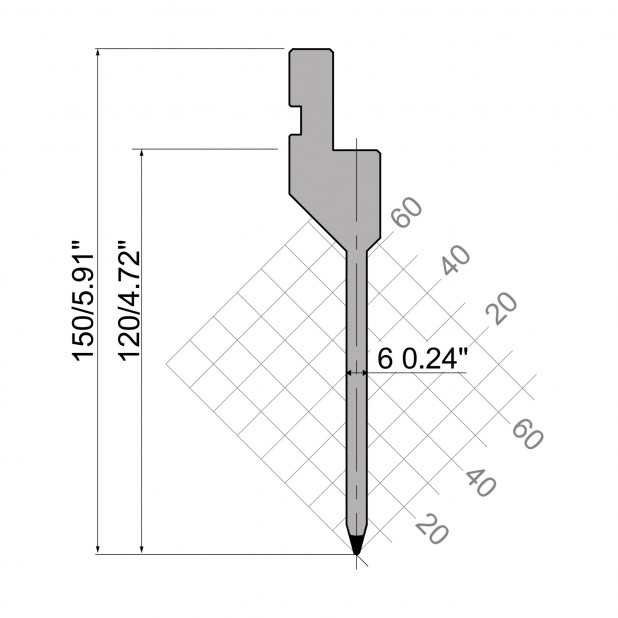

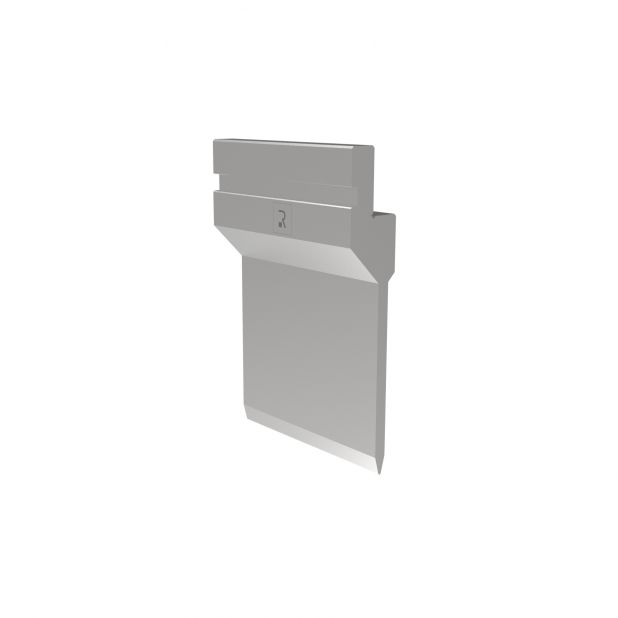

Punch R1 European type AFH Series with Working height=120mm, α=30°, Radius=0,8mm, Material=42Cr, Max. load=5
Punch R1 European type AFH Series with Working height=120mm, α=30°, Radius=0,8mm, Material=42Cr, Max. load=5
  • Descripción
  • Características
  • Archivos adjuntos

Punzón tipo R1 estilo Européo Serie AFH con altura de trabajo=120mm, α=30°, Radio=0,8mm, material=42Cr, máx capacidad=500kN/m.
