P.116.88.R08Utillaje > SOLUCIONES DE PLEGADO > Utillaje > Tipo R1: Punzones > PS.120.88.R08P.125.88.R025

PS.120.88.R08

Código Long. Peso Precio
PS.120.88.R08.835 835 mm 16.40
PS.120.88.R08.415 415 mm 8.20
PS.120.88.R08.795s 795 mm FX 15.60
PS.120.88.R08.805s 805 mm F 15.80

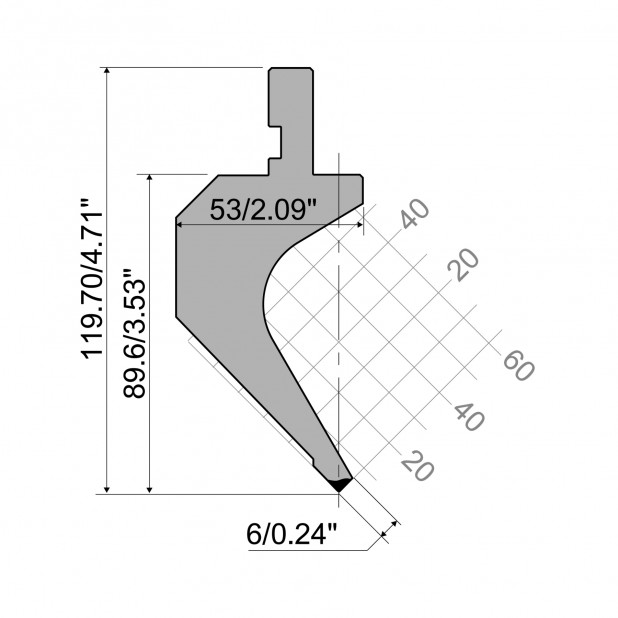

Punch R1 European type with Working height=89,7mm, α=88°, Radius=0,8mm, Material=C45, Max. load=450kN/m.
Punch R1 European type with Working height=89,7mm, α=88°, Radius=0,8mm, Material=C45, Max. load=450kN/m.
  • Descripción
  • Características
  • Archivos adjuntos

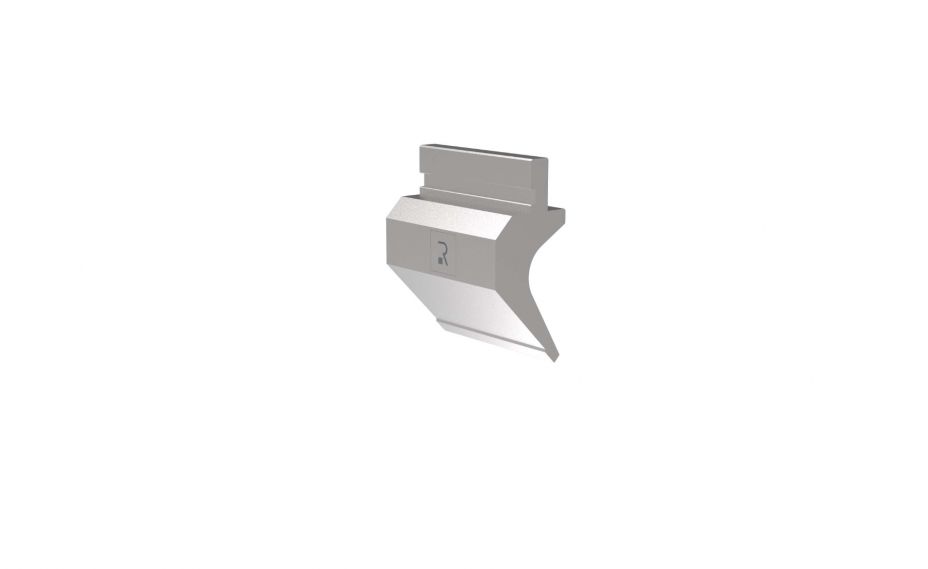

Punzón tipo R1 estilo Européo con altura de trabajo=89,7mm, α=88°, Radio=0,8mm, material=C45, máx capacidad=450kN/m.

Horn 1
795 mm FX
805 mm F
