TOP.PC.120-20
Soporte para herramientas de doblado R1 estilo Européo Serie TOP con altura de trabajo=90mm, α=.°, Radio=20-40mm, material=42Cr, máx capacidad=1000kN/…

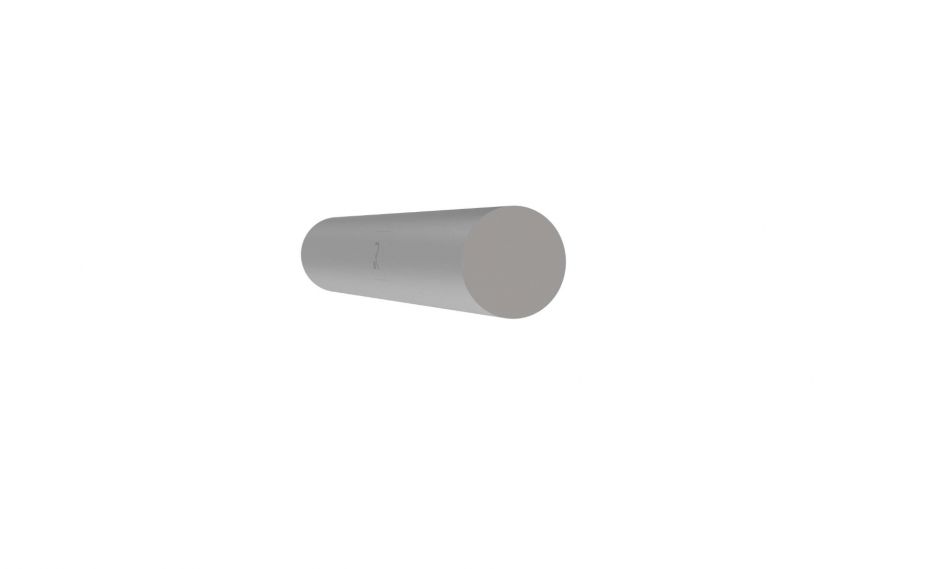

Herramientas de radio R08-40
| Código | Long. | R(mm) | Peso | Precio | |
|---|---|---|---|---|---|
| TOP.C08.525 | 525 mm | 8.0 | 0.80 |
|
|
| TOP.C08.495s | 495 mm segmented | 8.0 | 1.90 |
|
|
| TOP.C09.525 | 525 mm | 9.0 | 1.0 |
|
|
| TOP.C09.495s | 495 mm segmented | 9.0 | 1.0 |
|
|
| TOP.C10.525 | 525 mm | 10.0 | 1.30 |
|
|
| TOP.C10.495s | 495 mm segmented | 10.0 | 1.20 |
|
|
| TOP.C11.525 | 525 mm | 11.0 | 1.60 |
|
|
| TOP.C11.495s | 495 mm segmented | 11.0 | 1.50 |
|
|
| TOP.C12.5.525 | 525 mm | 12.5 | 2.00 |
|
|
| TOP.C12.5.495s | 495 mm segmented | 12.5 | 1.90 |
|
|
| TOP.C14.525 | 525 mm | 14.0 | 2.50 |
|
|
| TOP.C14.495s | 495 mm segmented | 14.0 | 2.40 |
|
|
| TOP.C15.525 | 525 mm | 15.0 | 2.90 |
|
|
| TOP.C15.495s | 495 mm segmented | 15.0 | 2.70 |
|
|
| TOP.C16.525 | 525 mm | 16.0 | 3.30 |
|
|
| TOP.C16.495s | 495 mm segmented | 16.0 | 3.10 |
|
|
| TOP.C17.5.525 | 525 mm | 17.5 | 4.00 |
|
|
| TOP.C17.5.495s | 495 mm segmented | 17.5 | 3.70 |
|
|
| TOP.C19.525 | 525 mm | 19.0 | 4.70 |
|
|
| TOP.C19.495s | 495 mm segmented | 19.0 | 4.40 |
|
|
| TOP.C20.525 | 525 mm | 20.0 | 5.20 |
|
|
| TOP.C20.495s | 495 mm segmented | 20.0 | 4.90 |
|
|
| TOP.C21.525 | 525 mm | 21.00 | 5.70 |
|
|
| TOP.C21.495s | 495 mm segmented | 21.00 | 5.40 |
|
|
| TOP.C22.5.525 | 525 mm | 22.5 | 6.60 |
|
|
| TOP.C22.5.495s | 495 mm segmented | 22.5 | 6.20 |
|
|
| TOP.C24.525 | 525 mm | 24.0 | 7.50 |
|
|
| TOP.C24.495s | 495 mm segmented | 24.0 | 7.70 |
|
|
| TOP.C25.525 | 525 mm | 25.0 | 8.10 |
|
|
| TOP.C25.495s | 495 mm segmented | 25.0 | 7.60 |
|
|
| TOP.C27.5.525 | 525 mm | 27.5 | 9.80 |
|
|
| TOP.C27.5.495s | 495 mm segmented | 27.5 | 9.20 |
|
|
| TOP.C30.525 | 525 mm | 30.0 | 11.60 |
|
|
| TOP.C30.495s | 495 mm segmented | 30.0 | 11.00 |
|
|
| TOP.C32.5.525 | 525 mm | 32.5 | 13.70 |
|
|
| TOP.C32.5.495s | 495 mm segmented | 32.5 | 12.90 |
|
|
| TOP.C35.525 | 525 mm | 35.00 | 15.90 |
|
|
| TOP.C35.495s | 495 mm segmented | 35.00 | 14.90 |
|
|
| TOP.C37.5.525 | 525 mm | 37.5 | 18.20 |
|
|
| TOP.C37.5.495s | 495 mm segmented | 37.5 | 17.20 |
|
|
| TOP.C40.525 | 525 mm | 40.0 | 20.70 |
|
|
| TOP.C40.495s | 495 mm segmented | 40.0 | 19.50 |
|
- Descripción
- Características

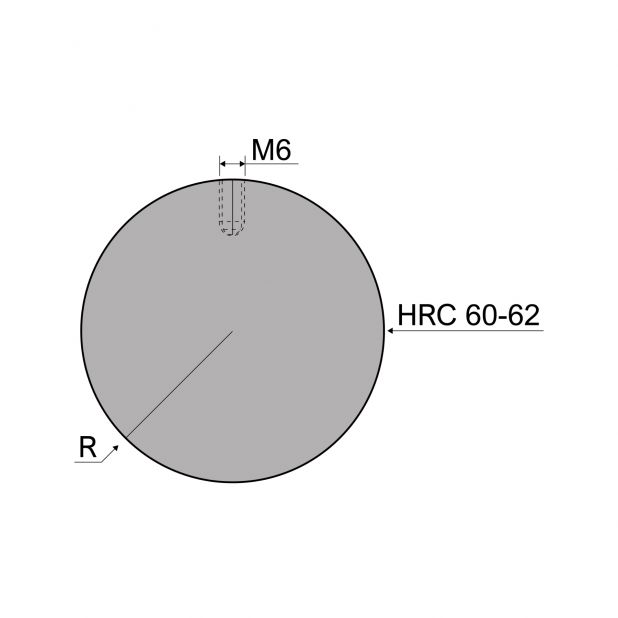

Elementos de radio con Material = c53, Capacidad máxima = 1000kN / m. Para ser utilizado con soporte TOP.PC.120-08, TOP.PC.120-20, TPR143.10, TPR136.15, BPR150.P10.10-RFA, BPR150.P10.15-RFA
TOP.PC.120-08
Soporte para herramientas de doblado R1 estilo Européo Serie TOP con altura de trabajo=90mm, α=-°, Radio=8-20mm, material=42Cr, máx capacidad=1000kN/m…
TPR143.10
Herramientas de plegado tipo R2 con Altura de trabajo = 106 mm, Material = 42Cr, Máx. carga = 1000kN / m. Para usar con R10-R25 "
TPR136.15
Herramientas de plegado tipo R2 con Altura de trabajo = 100 mm, Material = 42Cr, Máx. carga = 1000kN / m. Para usar con R15-R40
